You can calculate Theoretical mechanical advantage[TMA] of pulley system.

  • Ideal Mechanical Advantage (IMA)—Calculate the efficiency of all pulleys at 100%
  • Theoretical Mechanical Advantage (TMA)—Calculated with pulleys including friction loss
  • Actual Mechanical Advantage (AMA)—Data actually measured by measuring machines

Powered by slackline.jp

Brake fficiency reference data

ModelSpecefficiencySAUCE
Petzl Pro Traxionself Jamming90‐92Slack Science
Petzl Pro Traxionself Jamming95official data
Petzl Pro Traxion
old model
83 at 0.4kNropetech
Petzl micro Traxionself Jamming91official data
Petzl micro Traxionself Jamming87 at 1kNRopelab
Petzl Mini Traxionself Jamming74 at 1kNRopelab
Petzl Mini Traxion69 at 1kNropetech.jp
Petzl IDDescender20-40
Petzl IDDescender37Ropelab
Petzl RIGDescender27 at 0.4kNropetech.jp
Petzl GriGriBelay Device30-50Slack Science
Petzl GriGri1Belay Device44 at 1kNRopelab
Petzl GriGri142 at 0.4kN
Petzl GriGri2Belay Device45 at 1kNRopelab
EdyBelay Device30-50
CMC MPDMulti-Purpose
Device
93Ropelab

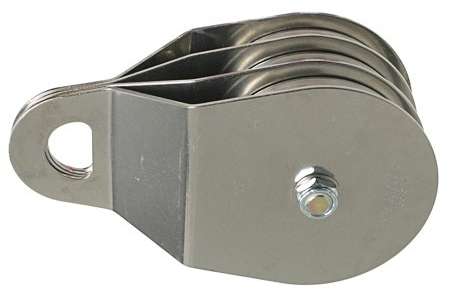

Pulley Efficiency reference data

ModelSpecefficiencySAUCE
SMC 3″ Doublebearing94~96Slack Science
Pwtzl Partnerbearing91official data
Petzl TWINbearing97official data
Petzl RollclipCarabiner pulley
bearing
85official data
Petzl rescue P50bearing95official data
Petzl rescue P5089 at 1kNRopelab
Petzl rescue P5090 at 0.4kNropetech.jp
Petzl mini P59bearing91official data
Petzl mini P5986 at 1kNRopelab
Petzl mini P5981 at 0.4kNropetech.jp
Petzl  MINDERbearing97official data
Petzl fixbushing71official data
Petzl fixbushing75 at 0.4kNropetech.jp
Oval CarabinerCarabiner42-56Slack Science
Petzl orange plasticCarabiner + sheave80Ropelab
DMM revolverCarabiner +52 at 0.4kNropetech.jp
climbingtechnology
ORBITER T
bearing96official data
Climbing Technology ORBITER Sbearing96official data
Climbing Technology ORBITER Mbushing80official data
CAMP single bussing 2 3/8”bushing86-88Slack Science
CAMP doubles are 2 3/8”bearing92Slack Science
CAMP JANUS PRObearing97official data
CAMP JANUS bushing90official data
CAMP DRYADbushing80official data
CAMP DRYAD PRObearing92official data
An In-Depth Look at Pulley Efficiency | Slack Science
Pulley efficiency is critical to a high-performing tensioning system. We find that switching from a mid-grade pulley setup to the PMPs will yield a moderate to ...

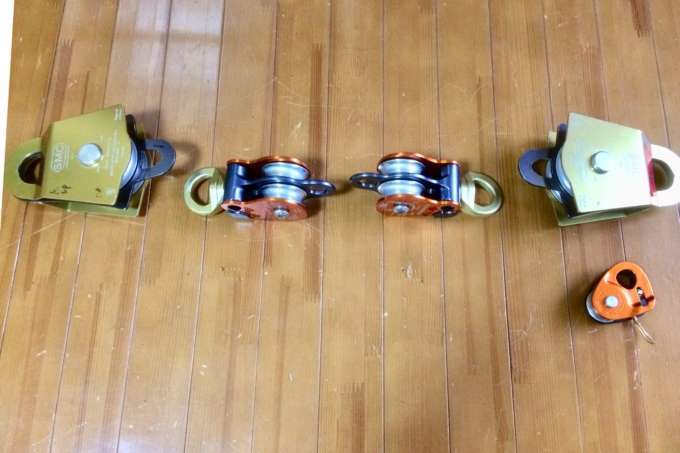

Example

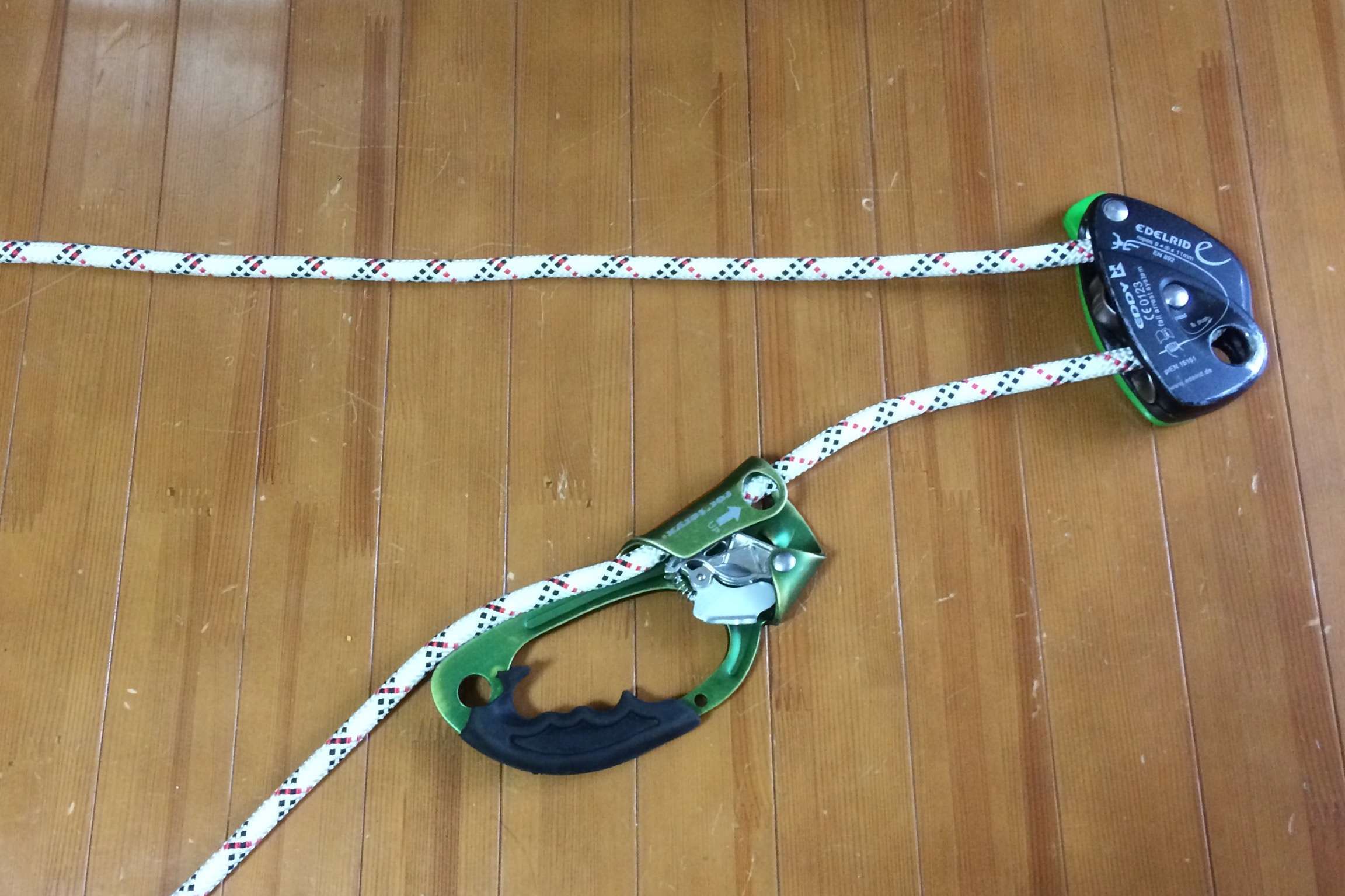

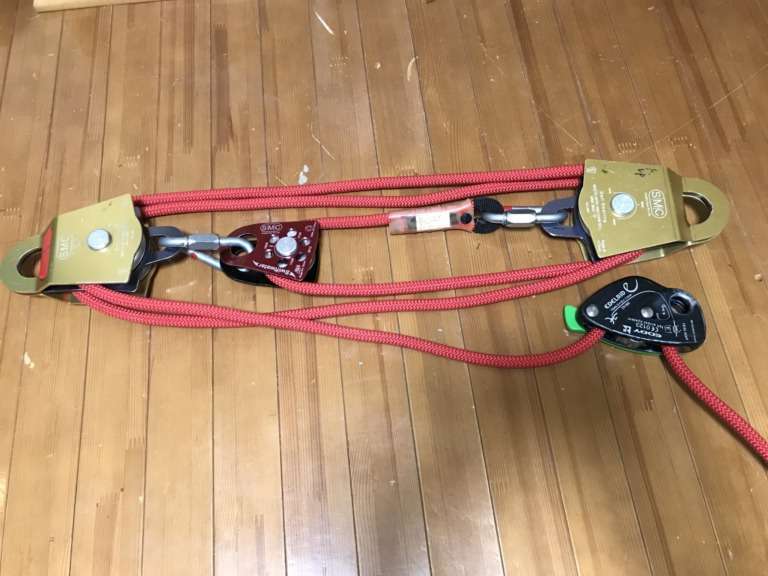

The brake is first pulley of the multiplier part.

Base: 600-5(100-95)-4(100-95)-3(100-95)-2(100-95)-(100-92)=522

Multiplier : 500-4(100-90)-3(100-85)-2(100-90)-(100-92MPD)=387

522%*387%=20.20

total MA 20.20:1

■5:1redirect  (2+3):1
all multiplier pulleys 90%
break 50%

200-2*(100-90)-(100-90)+(300-2*(100-90)-(100-90))*(100-50)=305

Calculating Forces in the Pulley Mechanical
Advantage Systems Used in Rescue Work
